Choose your Capper

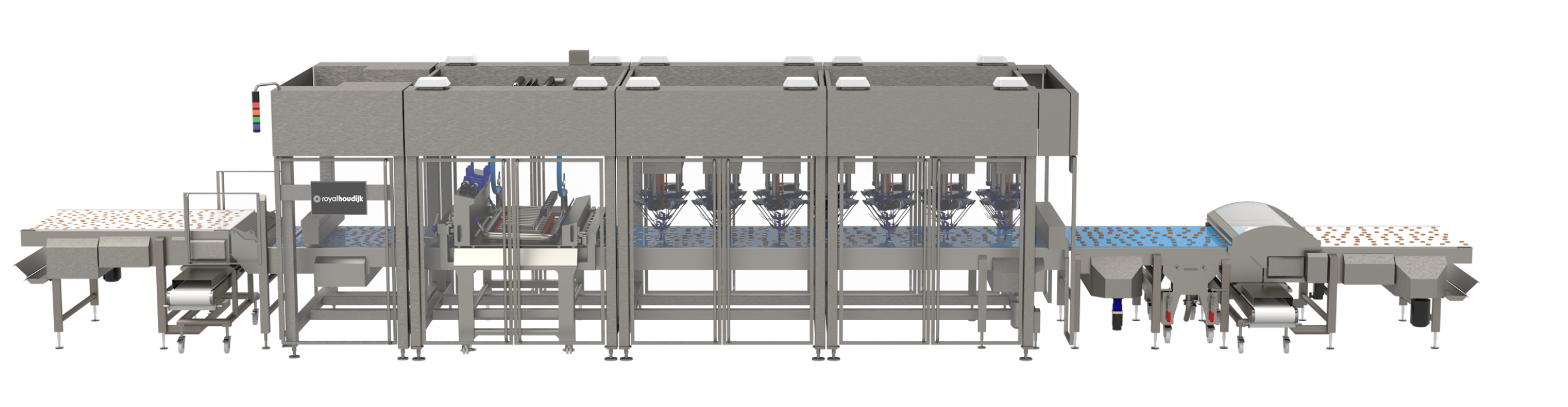

Flex Capper PE
- No limitations regarding product shape, dimensions, and tolerances
- Capacities of up to 560 base cake rows/min
- No required product tolerances
- Filling printed according to the special shaped base cakes
- Scalability to match actual and future production capacities
- No guides, no accumulation, no gating resulting in very gentle base cake handling
- Several cream layers possible
- Minimal changeover time between product size changes due to one size part (receiving dribble board

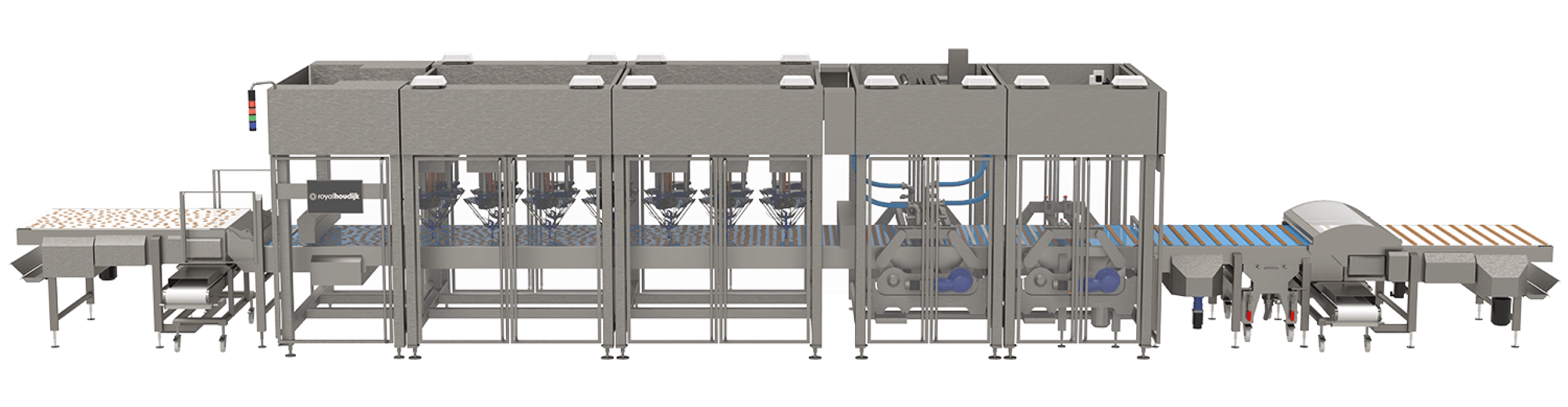

Flex Capper ME
- No limitations regarding product shape, dimensions, and tolerances
- Capacities of up to 400 base cake rows/min
- No required product tolerances scalability to match actual and future production capacities
- No guides, no accumulation, no gating resulting in very gentle base cake handling
- Minimal changeover time between product size changes due to one size part (receiving dribble board)

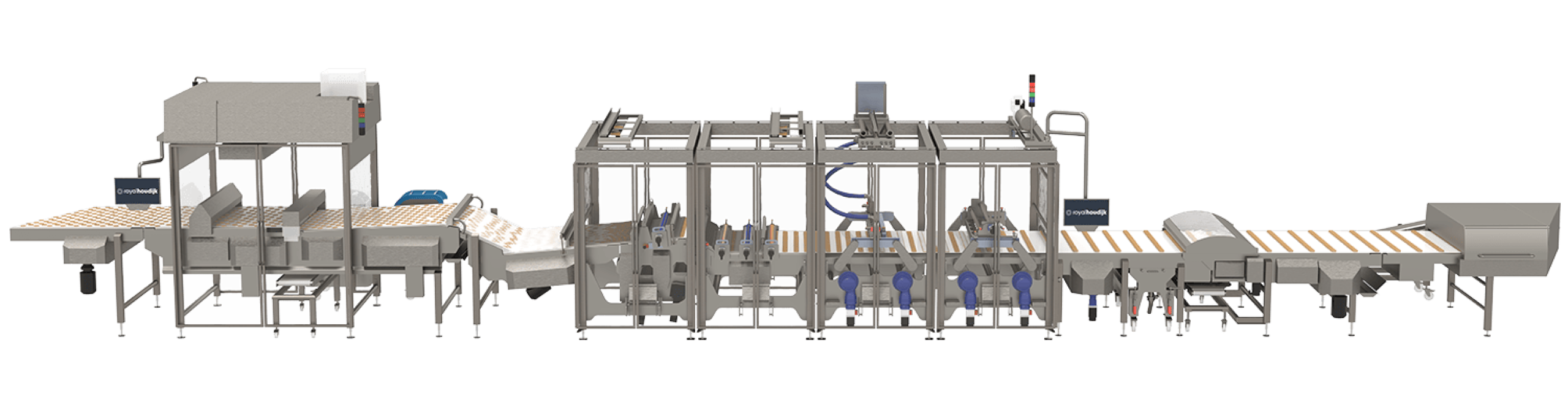

Capper SR
- Standard Capper, up to 240 base cake rows per minute, 1.200 or 1.600mm wide
- All size parts designed according to Poka Yoke philosophy, for fast and easy change-over and vertical production start-up
- State-of-the-art cream supply and manifold
- Hygienic design

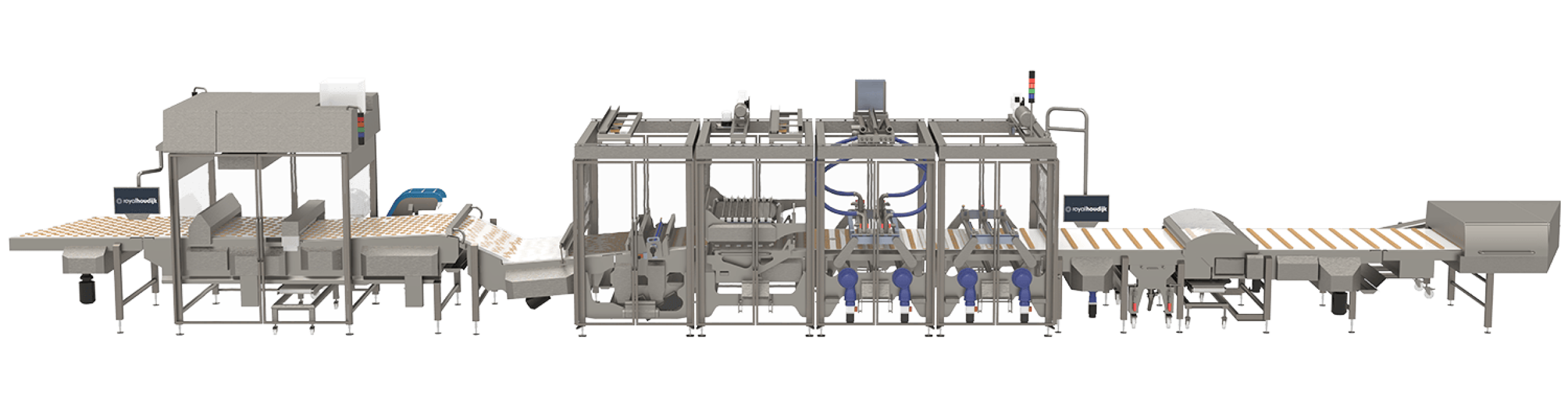

Capper XR
- High speed Capper, up to 360 base cake rows per minute, 1.600 or 1.800mm wide
- Standard equipped with a Vision Selector for quality control and product rejection
- State-of-the-art cream supply and manifold
- Hygienic design

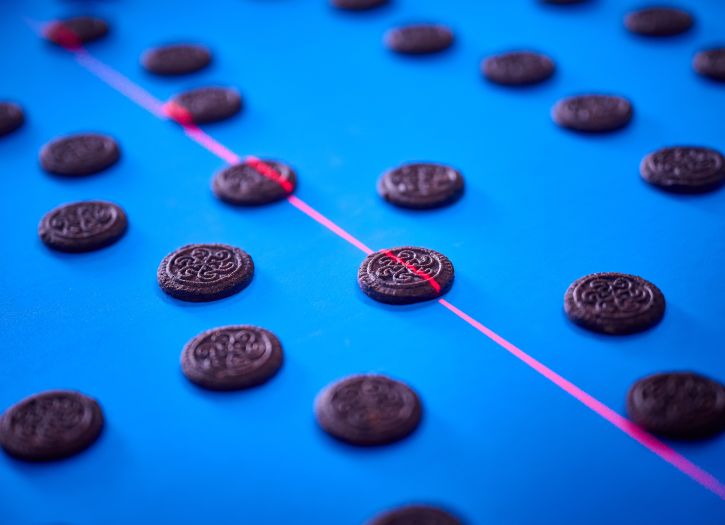

1. Product inspection
Incoming products are visually checked.

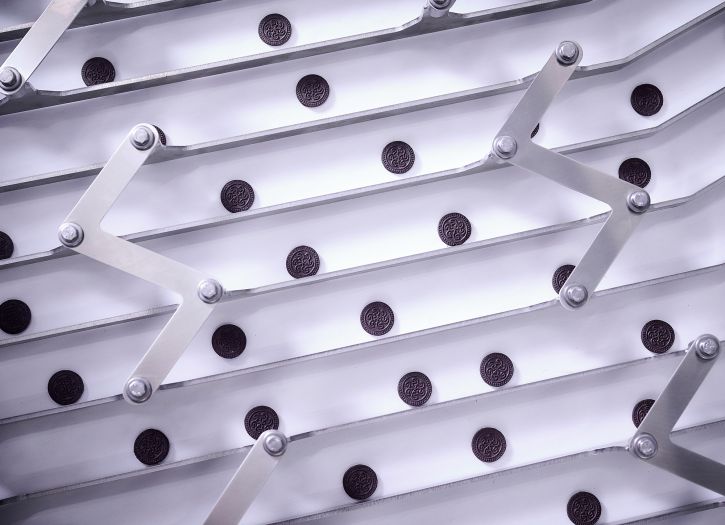

2. Alignment
Products are aligned and balanced.

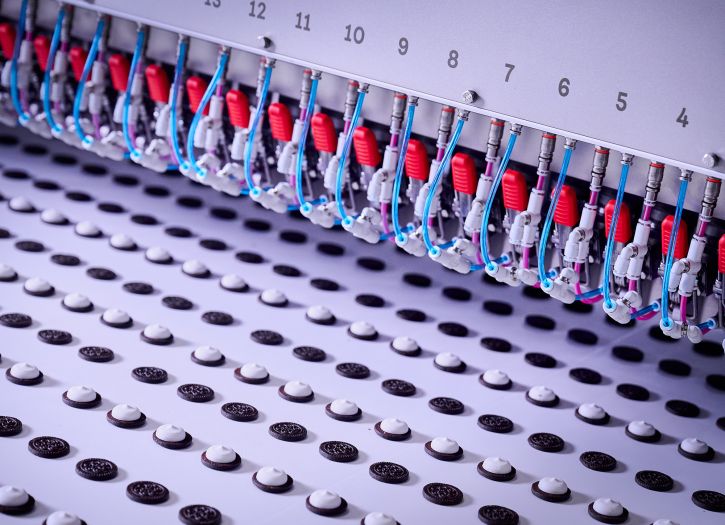

3. Depositing
Filling is precisely deposited onto the base products.

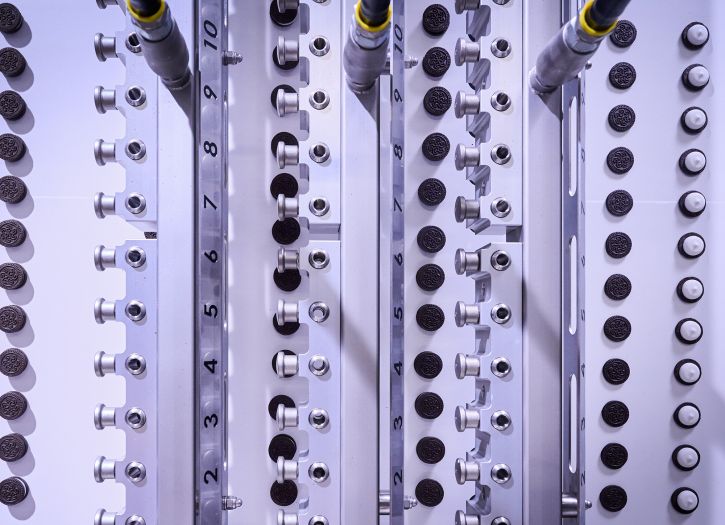

4. Capping
A second product is placed to create a sandwich.
5. Outfeed
Products are being transferred to cooling.

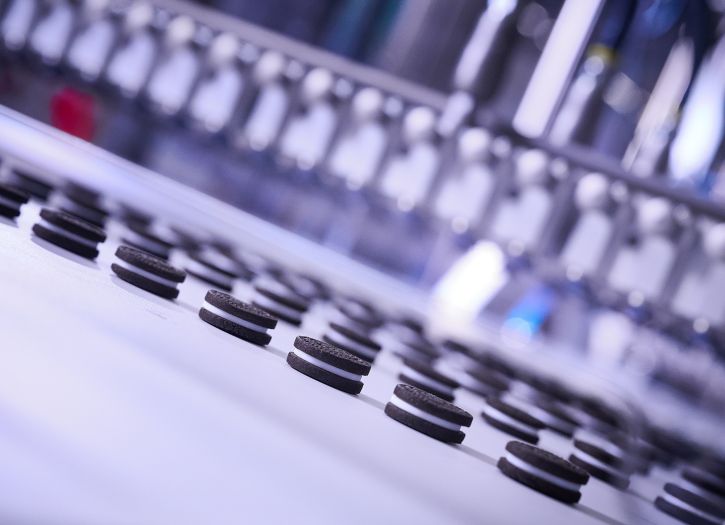

6. Packaging
Finished sandwiches move on to the Cookiebot for further packaging.
'The Capper is fast, reliable and built for 24/7 performance. It handles up to 6,000 sandwiches per minute with ease.'
-
Marcus Pickart
Commercial Director
Add-on systems for Capper
Inline (cooling) buffer
- Inspection & rejection of up to 10.000 products per minute
- Small footprint, because of multi-layered design
- Can be delivered with an insulated chamber with temperature and humidity control for controlled cooling of products
- Seamless integration with downstream Cookiebot systems
Cream kitchen
- Houdijk can supply Capper in turn-key combination with first-class cream kitchen
- Facilitates perfect mechanical, electrical and software interface
- Ensures vertical start-up
- Optionally: joint FAT
Vision Selector
- Inspection & rejection of up to 10.000 products per minute
- Using an array of 2D and/or 3D camera’s
- Inspection width up to 1.800mm
- Data collection and feedback via MES optional
Belt-wash unit
- Washing by means of pressurized (warm) water spray system
- Drying by means of scrapers and air knife
- In combination with pull-nose and cross-discharge conveyor
- Can be wheeled in and out from underneath conveyor for cleaning and maintenance
COP trolley
- Special trolley to accommodate manifold for cleaning and maintenance
- Trolley comes with its own control system and connectors to cycle manifold through COP
- Provided with frame to turn manifold upside down for easy access
- Fully stainless steel and hygienic design
Add-on systems for Capper and Cookiebot
Inline (cooling) buffer
- Inspection & rejection of up to 10.000 products per minute
- Small foodprint, because of multi-layered design
- Can be delivered with an insulated chamber with temperature and humidity control for controlled cooling of products/li>
- Seamless integration with downstream Cookiebot systems
Cream kitchen
- Houdijk can supply Capper in turn-key combination with first-class cream kitchen
- Facilitates perfect mechanical, electrical and software interface
- Ensures vertical start-up
- Optionally: joint FAT
Vision selector
- Inspection & rejection of up to 10.000 products per minute
- Using an array of 2D and/or 3D camera’s
- Inspection width up to 1.800mm
- Data collection and feedback via MES optional
Belt-wash unit
- Washing by means of pressurized (warm) water spray system
- Drying by means of scrapers and air knife
- In combination with pull-nose and cross-discharge conveyor
- Can be wheeled in and out from underneath conveyor for cleaning and maintenance
COP trolley
- Special trolley to accommodate manifold for cleaning and maintenance
- Trolley comes with its own control system and connectors to cycle manifold through COP
- Provided with frame to turn manifold upside down for easy access
- Fully stainless steel and hygienic design
Houdijk’s Design Vision guarantees solid, well-build and lasting solutions, that can withstand
a 24/7 operation for years.
